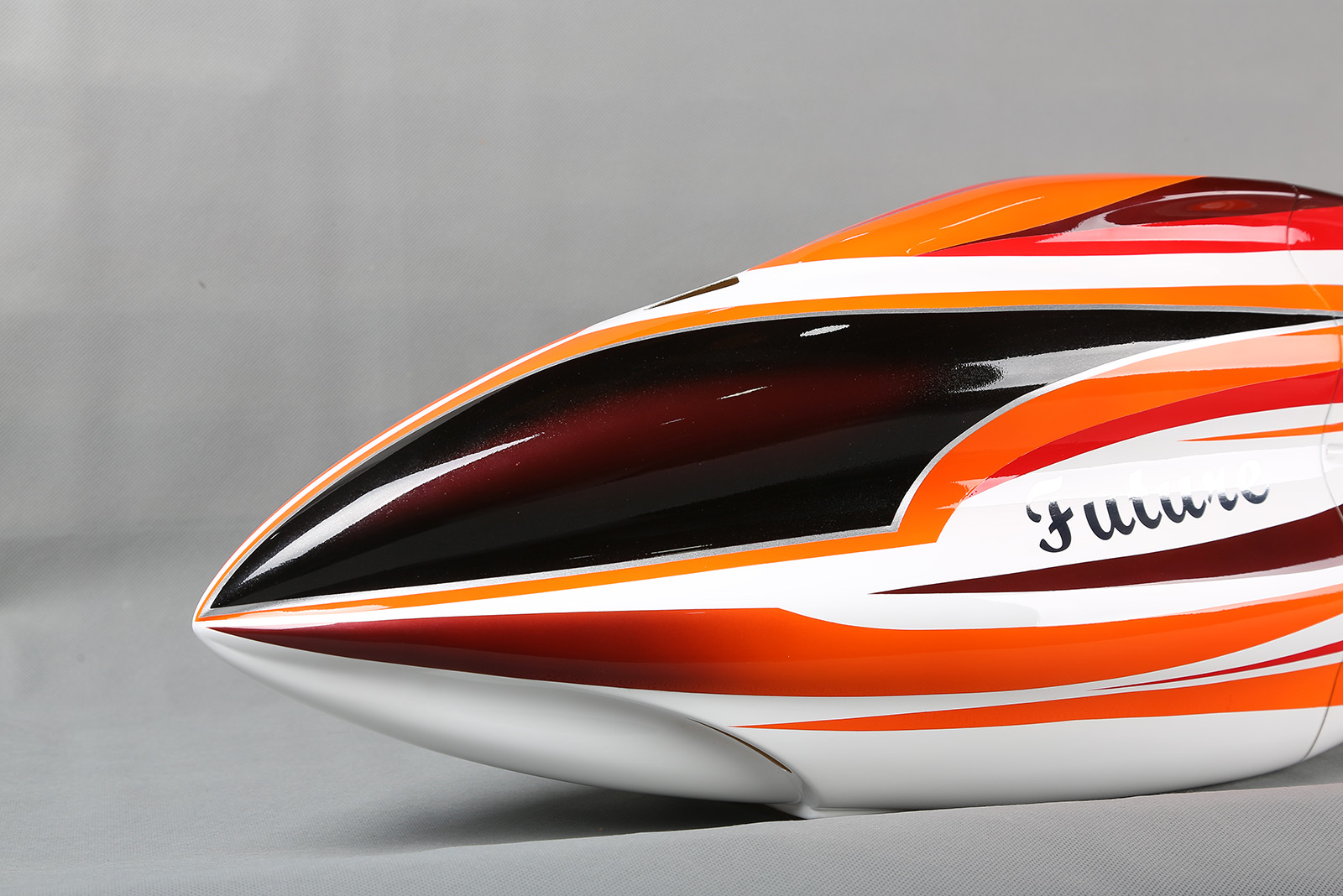

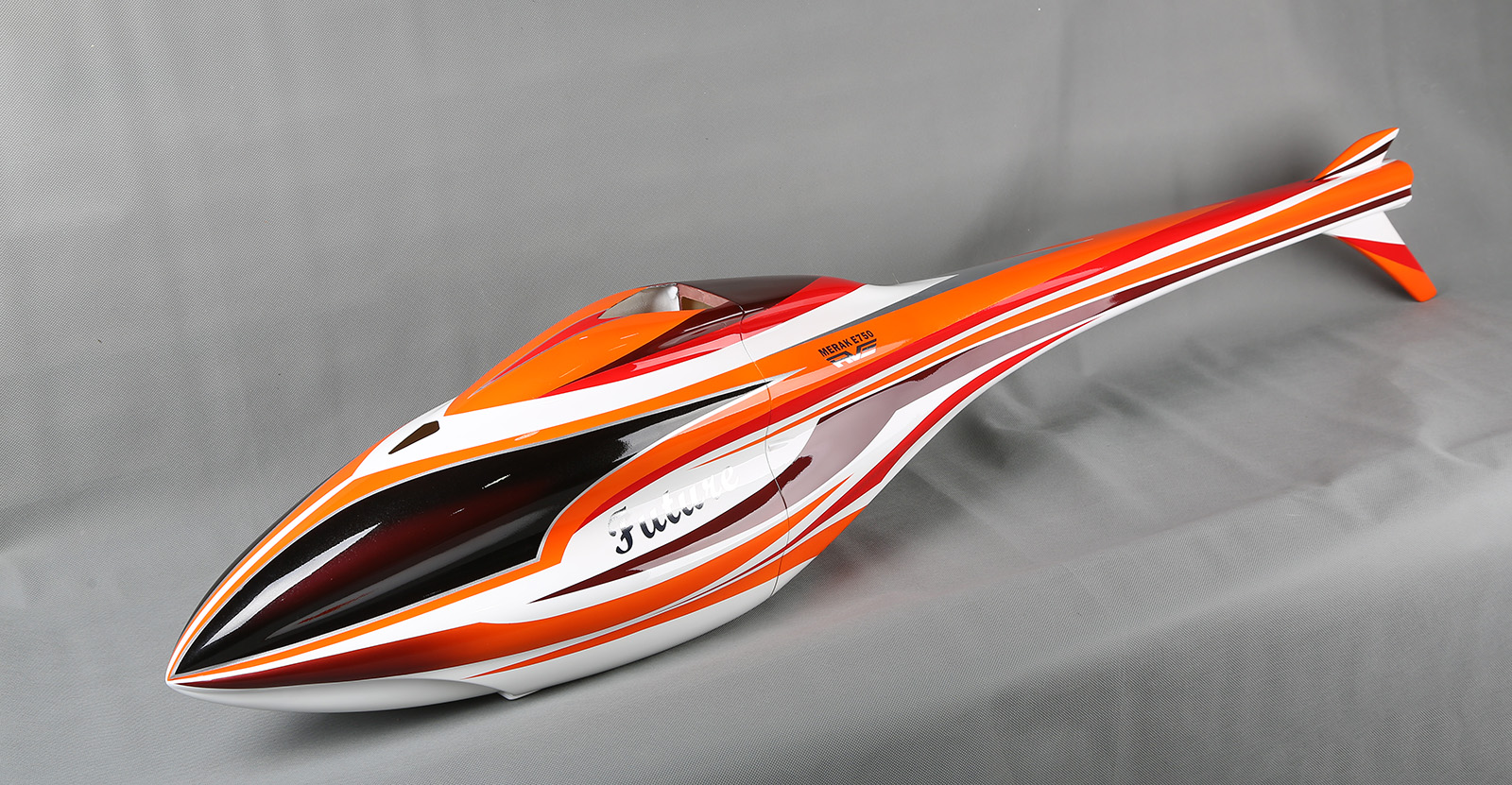

Designed based on the concept of NEMO, a designer from the Central Academy of Fine Arts, it features a futuristic and visually impactful liquid streamline design. This multi-curved surface design significantly enhances the structural strength of fiberglass, providing excellent load-bearing capacity and torsional rigidity, allowing the fuselage shell to be made thinner and lighter.

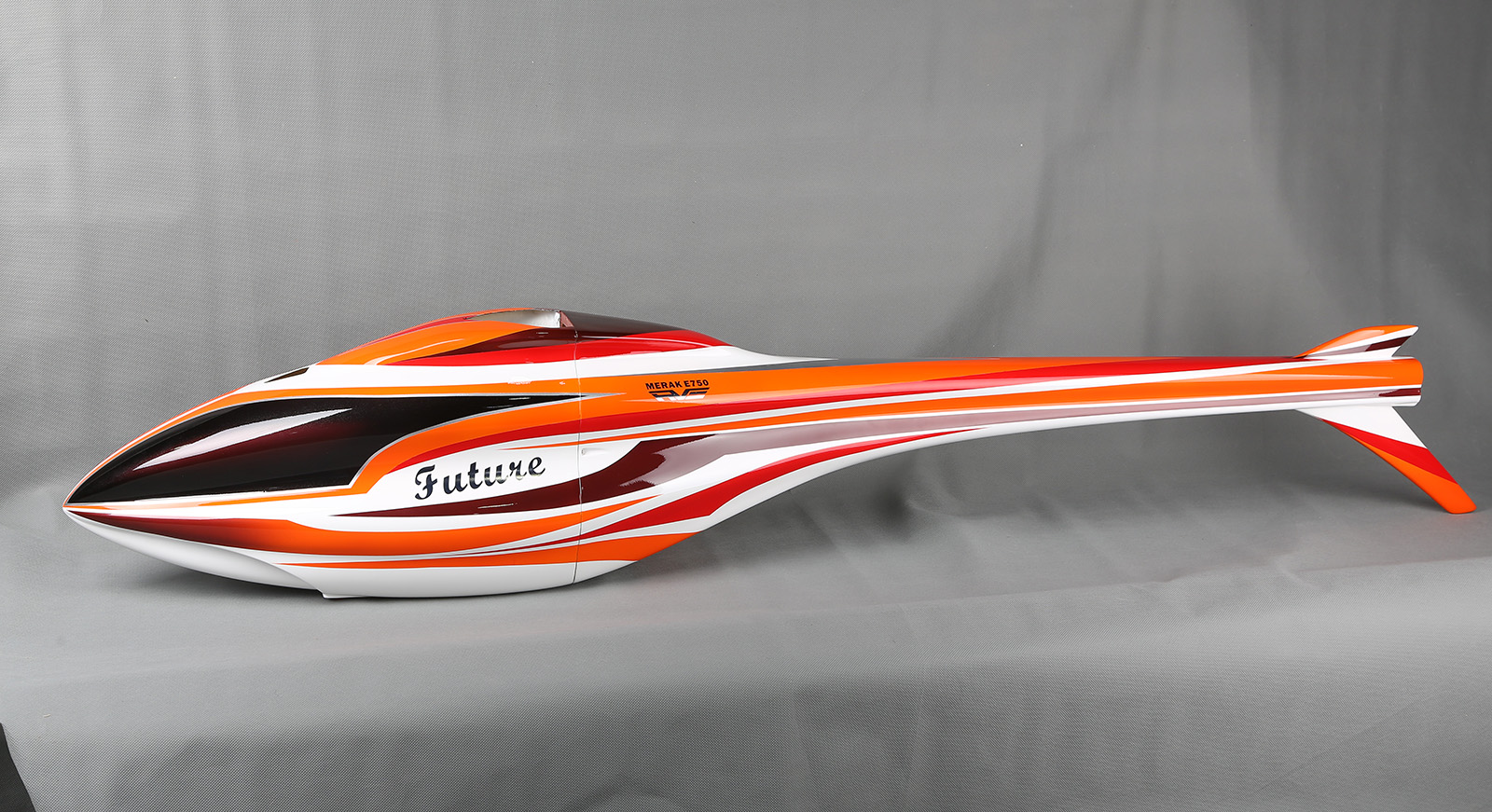

True to the character of this design, its name was derived accordingly — Future.

As an F3C body, aerodynamic performance is even more crucial.

To maintain consistent speed during high-altitude maneuvers, the designer increased the body cross-sectional area to reduce its descent speed during dives.

The multi-curved design is also highly beneficial for autorotation landings! As airflow moves upward from the bottom of the body shell, it creates an air-cushion effect around the body, effectively slowing down the helicopter’s descent and helping to perform this maneuver with high quality.

The vertical stabilizer has been specially reinforced to withstand greater impact.

The internal cooling air ducts of the body shell have been optimized to effectively improve heat dissipation for all electronic equipment inside the body, ensuring reliable performance even in hot summer weather.

Body Specifications

Length: 1520 mm

Width: 217 mm

Height: 268 mm

Weight: 550 g ±30 g
